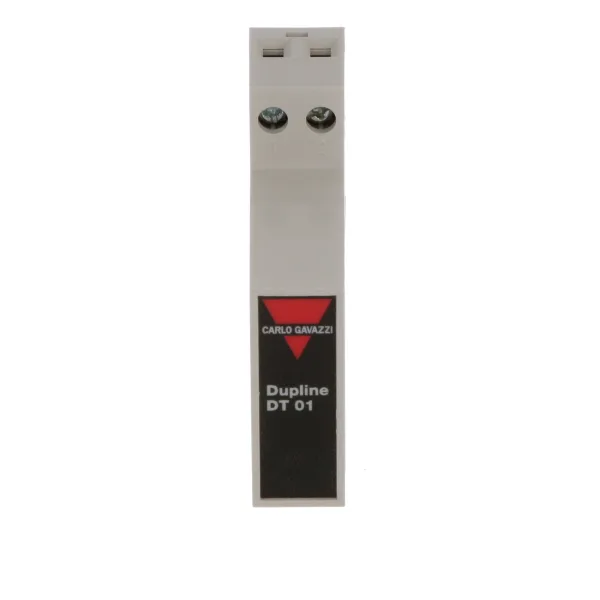

Carlo Gavazzi Dupline DT01 Line Terminator

In the world of robust and long-distance industrial automation, the Carlo Gavazzi Dupline fieldbus system stands out for its reliability and simplicity. A crucial, yet often overlooked, component of any Dupline network is the line terminator. Today, we’re taking a deep dive into the Carlo Gavazzi DT01, the dedicated device designed to ensure your data communication is flawless.

Product Overview: What is the Dupline DT01?

The Carlo Gavazzi DT01 is an essential line termination unit specifically engineered for the Dupline fieldbus system. This system is renowned for its exceptional noise immunity and the ability to cover distances up to 10 km on a simple, unshielded two-wire bus.

The primary function of the DT01 Line Terminator is to eliminate signal reflections at the end of the bus. These reflections can cause data corruption, communication errors, and overall network instability. By providing the correct termination resistance, the DT01 absorbs this electrical energy, ensuring a clean and stable signal for all connected devices.

Key Features and Specifications:

• Plug-and-Play Installation: Designed for easy integration at the end of your Dupline network.
• LED Status Indicators: Provides clear visual feedback on network status and power.
• Robust Design: Built to withstand harsh industrial environments.
• Essential for Network Integrity: Not an optional accessory, but a mandatory component for a reliable SCADA and data acquisition system.

Application Scenarios: Where is the DT01 Used?

The Dupline DT01 is indispensable in any application utilizing the Dupline protocol. Its use cases span across various industries that require long-distance monitoring and control.

1. Building Automation (BMS): In large complexes, the DT01 ensures reliable communication from sensors and actuators monitoring temperature, humidity, occupancy, and energy meters back to the central controller.
2. Industrial Monitoring and Control: For remote I/O applications in manufacturing plants, water treatment facilities, and warehouses. It helps in gathering data from digital inputs (e.g., switch status, flow meters) and controlling digital outputs.
3. Infrastructure Projects: Used in tunnel lighting control, parking garage management systems, and airport logistics, where long cable runs are the norm, and signal integrity is paramount.
4. Agricultural and Environmental Monitoring: In large-scale farms or weather stations, the DT01 supports networks of sensors spread over a wide area, ensuring accurate data transmission.

Common Questions & Troubleshooting (FAQ)

Q: What happens if I don’t install the DT01 Line Terminator?
A: Without proper bus termination, your Dupline network will likely experience intermittent communication failures, ghost signals, and complete data loss. The system will be highly unstable, leading to costly downtime and diagnostics.

Q: Where exactly should the DT01 be installed?
A: The DT01 must be installed at the farthest physical end of the Dupline two-wire bus, after the last sensor, actuator, or interface module in the chain.

Q: The LED on my DT01 is not lit. What should I check?
A: A non-lit LED typically indicates a lack of power. Check the following:

• Wiring Connections: Ensure the two-wire bus is correctly and securely connected to the DT01’s terminals.
• Power Supply: Verify that the main Dupline power supply is operational and that voltage is present at the end of the bus.
• Short Circuits: Inspect the bus for any potential short circuits that could be pulling down the voltage.

Q: Can I use a standard resistor instead of the DT01?
A: While a termination resistor of the correct value is the core requirement, the Carlo Gavazzi DT01 is the recommended and certified solution. It is designed for the specific electrical characteristics of the Dupline system and provides a robust, packaged solution with status indication, ensuring long-term reliability.

Conclusion

The Carlo Gavazzi Dupline DT01 may be a small device, but its role is monumental. It is the guardian of signal integrity for one of the most robust long-distance communication systems in industrial automation. By properly terminating your fieldbus network with the DT01, you invest in the reliability, accuracy, and stability of your entire data acquisition and control system.
