G50102206

Description

Maximizing Flexibility and Density: A Comprehensive Guide to the Carlo Gavazzi Dupline Two-Channel Input Module G50102206

In the architecture of industrial automation, achieving the perfect balance between I/O point density, system flexibility, and unwavering reliability is a constant engineering pursuit. While single-channel modules offer ultimate signal isolation, and high-density units maximize space efficiency, the Carlo Gavazzi Dupline Two-Channel Input Module G50102206 occupies a crucial middle ground. It is the ideal solution for applications requiring a compact, cost-effective, yet highly versatile interface for a pair of critical field signals.

This module is a fundamental component of the renowned Carlo Gavazzi Dupline fieldbus system, a network celebrated for its exceptional noise immunity and long-distance capabilities. The G50102206 extends these benefits by providing two independently configurable input channels in a single, robust package. This deep-dive blog will explore the product’s specifications, its standout features, diverse application scenarios, and answer common technical questions, providing a complete resource for system designers and technicians.

Product Introduction: The Carlo Gavazzi G50102206 Unveiled

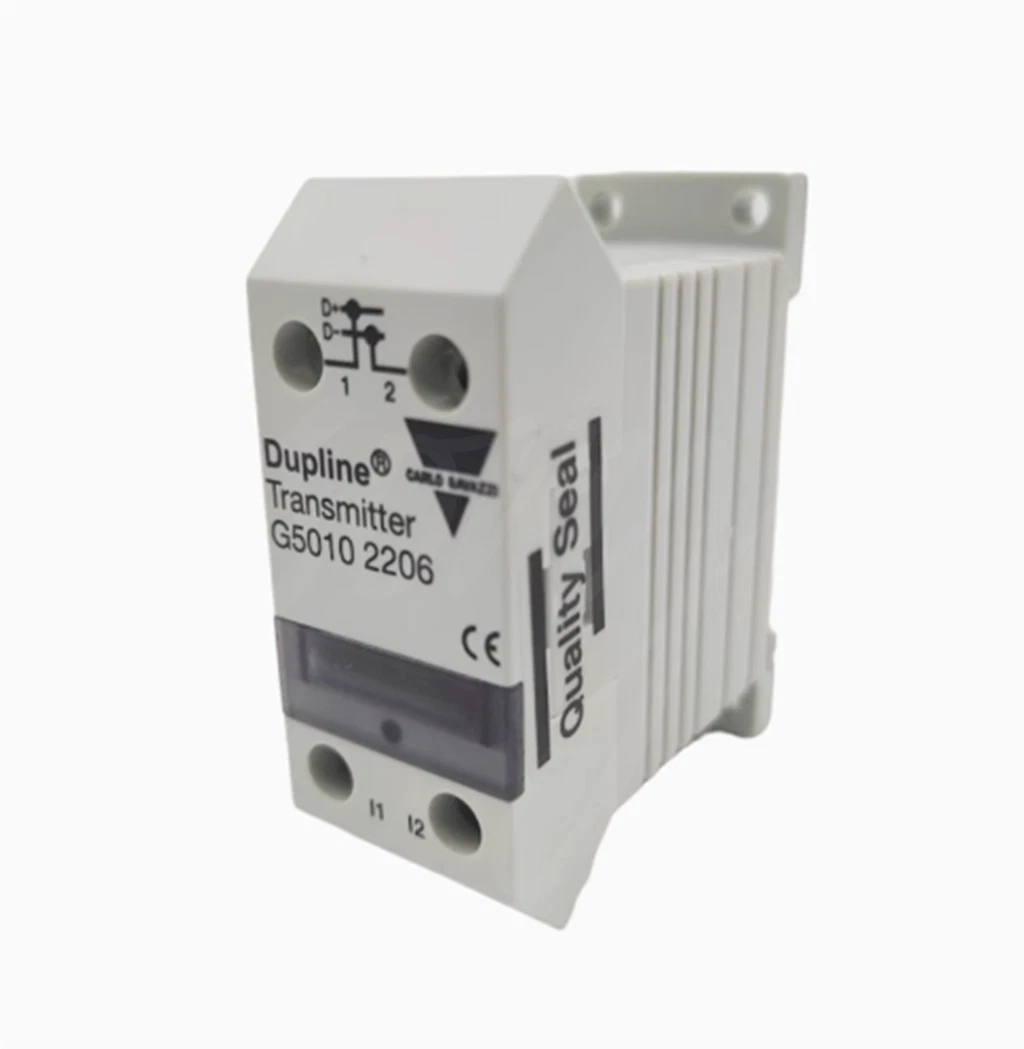

The Carlo Gavazzi G50102206 is a two-channel universal input module engineered for the Dupline fieldbus network. It acts as a slave device on the bus, interfacing directly with the field and transmitting digitized data back to a central Dupline master, such as a GRPG-I Gateway. Its core strength lies in its “universal” input design, which allows each of its two channels to be individually configured to accept a wide array of signal types. This versatility eliminates the need for dedicated modules for different sensors, streamlining both the design phase and on-site commissioning.

Core Technical Specifications and Key Features

Understanding the technical capabilities of the Carlo Gavazzi dual-channel input module is key to leveraging its full potential in an automation system.

• Model: G50102206 (A key part of the Carlo Gavazzi G5010 series of I/O modules).

• Bus System: Fully compatible with the Dupline fieldbus system.

• Input Channels: Two independent, universal input channels.

• Versatile Input Compatibility (per channel): Each channel can be software-configured to operate as:

  • Digital Input (DI): For reading the status of dry contacts (e.g., from pushbuttons, limit switches, door sensors) or compatible wet contacts.

  • Analog Input (AI): For measuring standard analog signals, including:

    • Voltage: 0-10V

    • Current: 0-20mA or 4-20mA (loop powered)

• High Resolution: In analog mode, the module provides high-resolution conversion, ensuring accurate and precise measurement of process variables for control and monitoring.

• Galvanic Isolation: The module features robust isolation between the field inputs, the power supply, and the Dupline bus. This critical protection guards the entire network against damaging voltage transients, ground loops, and electrical noise from the field environment.

• Power Supply: Operates on a standard 24V AC/DC supply, ensuring easy integration into common industrial control panel layouts.

• LED Indicators: Each channel has a dedicated status LED, providing immediate visual feedback on the input state (on/off for digital, active for analog). Additional LEDs indicate module power and bus communication status, facilitating rapid diagnostics.

• Compact and Rugged Design: The module is built to endure the challenging conditions of industrial settings, with a wide operating temperature range and high immunity to electromagnetic interference (EMI).

Key Advantages and the Case for Dual-Channel Modules

Why choose a two-channel module like the G50102206 over other options?

1. Optimized Space and Cost Efficiency: For applications requiring multiple signal types but not a full rack of single-channel modules, the G50102206 offers the perfect compromise. It doubles the I/O density compared to a single-channel module (like the G50101106) while maintaining more isolation and individual configuration than higher-density alternatives. This leads to a lower cost per channel and a more compact control panel footprint.

2. Enhanced Design and Operational Flexibility: Engineers can use a single module type to interface with two completely different sensors. For instance, one channel can monitor a digital flow switch while the other measures an analog temperature from a 4-20mA transmitter. This simplifies spare parts inventory and allows for last-minute design changes without hardware modifications.

3. Inherited Dupline System Robustness: The module brings all the benefits of the Dupline fieldbus to your two-channel application, including communication over distances up to 10 km on standard cable and superior performance in electrically noisy environments like manufacturing plants and utility substations.

4. Simplified Wiring and Commissioning: Having two channels in one terminal block assembly reduces overall wiring complexity. Configuration is typically handled centrally via the Dupline master’s software, making it easy to set up and modify parameters without touching the module itself.

Application Scenarios: Where the G50102206 Shines

The Carlo Gavazzi two-channel input module is exceptionally versatile, finding use across numerous sectors.

1. Compact Machine Automation and OEM Equipment:

• Function: Monitoring a machine’s safety gate (digital input) and hydraulic pressure (4-20mA analog input) simultaneously.

• Benefit: Provides both safety interlocking and process monitoring with a single, compact module.

2. Building Management and HVAC Systems:

• Function: In an air handling unit (AHU), one channel can monitor the status of a filter clog switch (digital), while the other measures the supply air temperature (0-10V analog).

• Benefit: Enables predictive maintenance (filter change) and closed-loop temperature control from one device.

3. Water and Wastewater Treatment:

• Function: At a pump station, one channel can read a high-level float switch alarm (digital), and the other can receive a signal from a level transducer (4-20mA) for precise control.

• Benefit: Offers both alarm protection and continuous level monitoring for efficient pump control.

4. Energy Monitoring and Power Distribution:

• Function: Connecting to a smart circuit breaker that provides both a general alarm (digital contact) and a load current reading (4-20mA output).

• Benefit: Allows for both immediate fault indication and continuous energy consumption tracking.

Common Questions and Troubleshooting (FAQ)

Q1: Can the two channels on the G50102206 be configured for different signal types?
A: Yes, absolutely. This is its primary advantage. Each channel is completely independent and can be configured as a digital input, 0-10V, or 4-20mA input without affecting the other.

Q2: How is the module configured?
A: Configuration is performed via the Dupline master (e.g., a GRPG-I gateway) using dedicated configuration software. You assign the module a unique bus address and then define the operating mode for each channel through a user-friendly software interface.

Q3: What happens if I wire a 4-20mA sensor to a channel configured for digital input?
A: The reading will be incorrect and unpredictable. The module’s internal circuitry behaves differently based on the configuration. Always ensure the software configuration matches the physical sensor wired to the channel.

Q4: Is the G50102206 compatible with all Dupline masters?
A: Yes, it is designed to be fully compatible with the Dupline protocol and will work with any Carlo Gavazzi Dupline master, including the GRPG-I gateway and older masters like those in the GS3391 series.

Conclusion: The Intelligent Choice for Versatile Two-Point Control

The Carlo Gavazzi Dupline Two-Channel Input Module G50102206 is a masterclass in intelligent industrial component design. It successfully balances the need for point density with the critical requirements of signal versatility and isolation. By providing two independently configurable channels in a robust and reliable package, it offers system integrators and OEMs a powerful tool to reduce costs, simplify designs, and build more resilient automation systems.

Whether you are upgrading an existing Dupline network or designing a new, cost-effective control solution from the ground up, the G50102206 stands as a compelling and highly capable choice for your dual-point interface needs.

---
