GRPG-I

The Carlo Gavazzi GRPG-I Dupline Gateway: Bridging Legacy Fieldbus to the Industrial IoT Era

In the world of industrial automation, the challenge of modernizing reliable, long-standing infrastructure without incurring massive rewiring costs is a constant battle. Legacy systems, built on robust and proven technologies like the Carlo Gavazzi Dupline fieldbus, form the backbone of countless buildings, factories, and utilities. The Carlo Gavazzi Dupline Gateway GRPG-I is the next-generation solution designed specifically to bridge this gap, transforming a proprietary, yet incredibly durable, fieldbus network into a modern, cloud-ready data source for the age of Industry 4.0 and the Industrial Internet of Things (IIoT).

This powerful protocol converter and industrial communication gateway goes beyond simple connectivity; it is an enabler for digital transformation, allowing facility managers and system integrators to unlock the full potential of their existing Dupline investments. This article provides a deep dive into the GRPG-I, exploring its features, applications, and the significant advantages it brings to any project involving legacy system integration.

Product Introduction: The Carlo Gavazzi GRPG-I Gateway

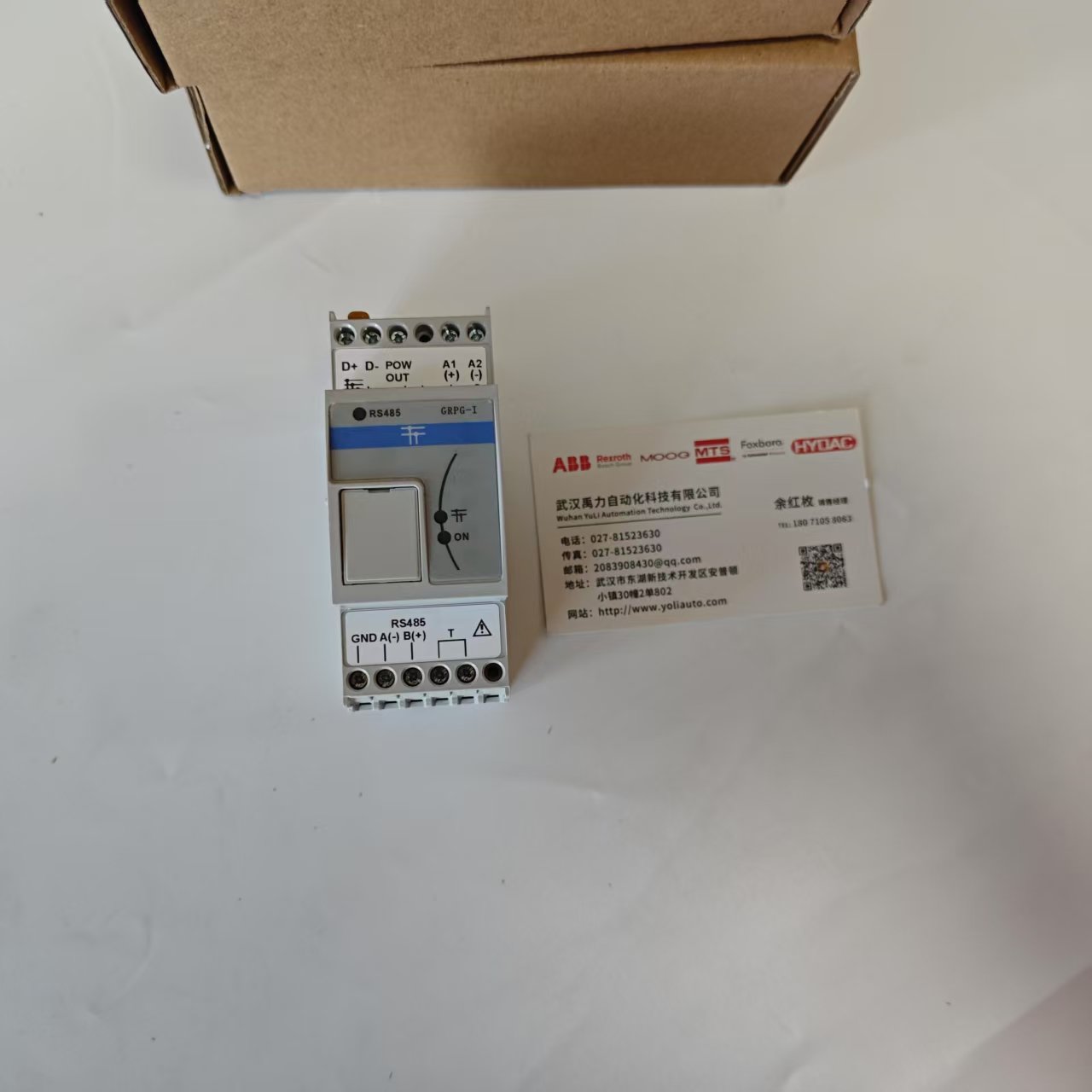

The Carlo Gavazzi GRPG-I is a sophisticated, DIN-rail mounted gateway that serves as a master on the Dupline fieldbus network. Its primary function is to act as a protocol converter, seamlessly translating the data from a vast array of Dupline slaves—such as I/O modules (e.g., the G50101106), energy meters, sensors, and counters—into open, universally understood industrial protocols. While previous generations, like the GS33910060800, established the foundation for Modbus integration, the GRPG-I elevates this capability with enhanced connectivity options and cloud readiness, making it a cornerstone for industrial automation modernization strategies.

Core Technical Specifications and Key Features

The power of the GRPG-I lies in its versatile technical architecture, designed for simplicity, security, and scalability.

• Model: Carlo Gavazzi GRPG-I Dupline Gateway

• Primary Function: Advanced protocol converter from Dupline to Modbus TCP and other Ethernet-based systems.

• Dupline Master Capability: Functions as the central master on the Dupline network, capable of communicating with up to 250 Dupline slaves over distances up to 10 km, leveraging the system’s renowned noise immunity and reliability.

• Ethernet Connectivity: Equipped with a standard Ethernet port for Modbus TCP/IP communication, enabling easy integration into local networks and allowing multiple clients (PLCs, SCADA systems, HMIs) to access data simultaneously.

• Integrated Web Server: A standout feature is its built-in web server. This allows for direct configuration and real-time data monitoring using a standard web browser, eliminating the need for dedicated software installation for basic setup and diagnostics.

• Cloud Connectivity: The GRPG-I is designed with IoT in mind. It can be configured to push data to cloud platforms and supervisory systems using protocols like MQTT and REST API, making it an ideal IIoT gateway for remote monitoring and analytics applications.

• Power Supply: Operates on a common 24V AC/DC supply, ensuring straightforward installation in standard industrial control panels.

• Configuration: Offers flexible configuration via the embedded web server or using Carlo Gavazzi’s dedicated configuration tools for more complex mapping of Dupline points to Modbus registers.

• Data Mapping: It automatically maps all connected Dupline devices into a coherent Modbus register map, making every data point—from a simple digital input status to a complex energy value—easily accessible via standard Modbus TCP commands.

Application Scenarios: Unleashing Data in Modern Systems

The GRPG-I gateway is the key to unlocking data trapped in legacy Dupline networks across a wide spectrum of industries.

1. Smart Building and HVAC System Modernization:
Older Building Management Systems (BMS) often rely on extensive Dupline networks for monitoring temperatures, humidity, room occupancy, pump status, and valve positions. The GRPG-I allows a new, IP-based BMS (e.g., Johnson Controls Metasys, Siemens Desigo CC, or Schneider Electric EcoStruxure) to seamlessly inherit all this data via Modbus TCP/IP, enabling centralized control, energy optimization, and predictive maintenance without the exorbitant cost of rewiring.

2. Industrial IoT and Predictive Maintenance:
In manufacturing plants, the GRPG-I can gather machine status, production counts, and analog sensor readings (e.g., vibration, temperature) from Dupline I/O modules. By transmitting this data via MQTT to a cloud-based analytics platform, it enables IIoT applications such as predictive maintenance, Overall Equipment Effectiveness (OEE) tracking, and real-time production monitoring.

3. Centralized Energy Management and Sub-Metering:
Facilities with a network of Carlo Gavazzi energy meters on a Dupline system can use the GRPG-I as a centralized data concentrator. It can collate data from dozens of meters and present it via Modbus TCP to a central energy management software, providing detailed insights into energy consumption patterns and identifying savings opportunities.

4. Water/Wastewater and Infrastructure Monitoring:
For remote pump stations, reservoir levels, and treatment plants using Dupline for its long-distance and robust characteristics, the GRPG-I provides a secure path to send critical operational data to a central SCADA system, enabling remote control and reducing the need for physical site visits.

Advantages and Value Proposition

Choosing the Carlo Gavazzi GRPG-I gateway delivers immediate and long-term benefits:

• Future-Proof Investment: It seamlessly connects proven Dupline fieldbus technology to modern IT and cloud ecosystems, protecting and extending the lifespan of existing assets.

• Reduced Total Cost of Ownership: Eliminates the need for expensive and disruptive system-wide rewiring, significantly lowering modernization costs.

• Enhanced Operational Insight: Provides a unified window into an entire Dupline network, enabling data-driven decision-making, improved efficiency, and proactive maintenance.

• Simplified Integration: The use of standard protocols like Modbus TCP and MQTT ensures compatibility with a vast array of software and hardware from different manufacturers.

• Remote Accessibility: Cloud connectivity options enable secure remote monitoring and management of assets from anywhere in the world.

Conclusion: The Definitive Bridge to Industry 4.0

The Carlo Gavazzi Dupline Gateway GRPG-I is more than a simple protocol converter; it is a strategic gateway to the future. By empowering engineers to integrate the unparalleled reliability of the Dupline fieldbus with the powerful data capabilities of modern industrial networks and the cloud, it solves one of the most pressing challenges in automation today: legacy system integration.

For any organization looking to enhance its operational intelligence, enable IIoT strategies, and modernize its control infrastructure in a cost-effective manner, the GRPG-I is an indispensable tool, ensuring that legacy investments continue to deliver value in the new digital age.

---
