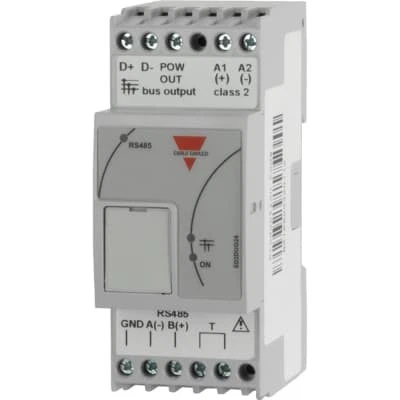

Carlo Gavazzi SD2DUG24: Compact DIN-Rail Modbus TCP/IP to Modbus RTU/ASCII Communication Gateway

The Carlo Gavazzi SD2DUG24 is a robust and versatile industrial communication gateway designed to bridge the gap between modern Ethernet-based networks and traditional serial fieldbus systems. This compact protocol converter is an essential component for enabling seamless Industrial Internet of Things (IIoT) connectivity and Industry 4.0 data acquisition strategies.

As a powerful Modbus Gateway, it facilitates bidirectional communication, allowing a Modbus TCP/IP Master (such as a SCADA system, PLC, or HMI) to easily access data from Modbus RTU and Modbus ASCII Slave devices (including energy meters, I/O modules, sensors, and drives). Its compact DIN-rail mounting design makes it ideal for space-constrained control panel installations.

Key Features & Product Keywords

• Dual Communication Protocol Conversion:

  • Modbus TCP/IP Server (Slave) to Modbus RTU/ASCII Master

  • Modbus TCP/IP Client (Master) to Modbus RTU/ASCII Slave

  • This dual functionality provides maximum flexibility for various network architectures.

• Robust Industrial Connectivity:

  • (1) 10/100 Mbit/s Auto-MDIX Ethernet port for reliable network integration.

  • (1) RS-485 serial port with isolation for connecting to a chain of serial devices.

  • Supports a wide baud rate range on the serial side for compatibility with legacy equipment.

• Simplified Configuration and Management:

  • Easy setup via a standard web browser (Web Server functionality) without dedicated software.

  • DHCP or static IP address assignment for flexible network integration.

  • Data logging capabilities for buffering information from serial devices.

• Industrial-Grade Design:

  • Compact form factor for efficient DIN-rail mounting.

  • Wide-range 24V AC/DC power supply input, suitable for various industrial environments.

  • Designed for reliable operation in demanding conditions.

Technical Specifications Summary

Typical Applications

The Carlo Gavazzi SD2DUG24 Gateway is perfectly suited for a wide range of industrial automation and monitoring applications, including:

• Connecting legacy Modbus RTU devices (e.g., Carlo Gavazzi energy meters, I/O modules) to modern SCADA and MES systems.

• Enabling remote monitoring and control of serial devices over an Ethernet network.

• Building centralized data acquisition systems for IIoT and Industry 4.0 projects.

• Integrating building management systems (BMS) and industrial control systems.

In summary, the Carlo Gavazzi SD2DUG24 is a reliable, easy-to-use, and cost-effective solution for modernizing your industrial network infrastructure. It ensures your critical field devices can communicate effectively in a connected enterprise environment, making it a fundamental component for data-driven operations.
