G50101106

Description

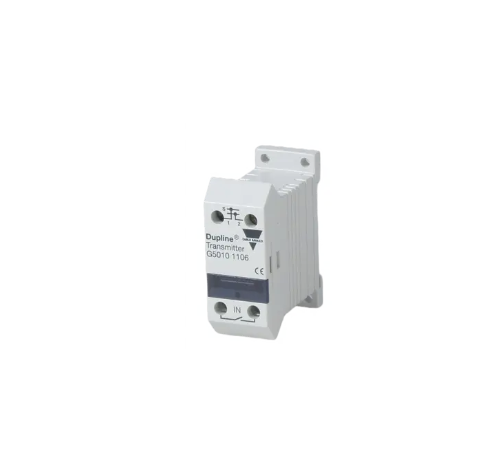

Carlo Gavazzi Dupline Single-Channel Input Module G50101106: Universal Signal Interface for Industrial Automation

The Carlo Gavazzi Dupline Single-Channel Input Module G50101106 represents a fundamental building block in industrial automation systems, providing versatile signal acquisition capabilities within the robust Dupline fieldbus infrastructure. This sophisticated universal input module delivers exceptional flexibility for interfacing with various field sensors and devices, making it an indispensable component in distributed control applications across multiple industries. Engineered with Carlo Gavazzi’s signature reliability and precision, the G50101106 module serves as a critical interface between field-level devices and higher-level control systems.

Technical Specifications and Operating Characteristics

The Carlo Gavazzi G50101106 is designed as a single-channel input device that offers comprehensive signal compatibility, eliminating the need for multiple specialized modules in mixed-signal applications. Its universal input capability allows seamless integration with both digital and analog field devices through simple software configuration.

Core Technical Features:

• Input Flexibility: Configurable for digital inputs (dry contacts, NAMUR sensors) and analog signals (0-10V, 0-20mA, 4-20mA)

• Signal Resolution: High-resolution analog-to-digital conversion for precise measurement accuracy

• Isolation Rating: Galvanic isolation between field input, power supply, and Dupline bus

• Operating Voltage: 24V AC/DC power supply compatibility

• Communication Protocol: Native integration with Dupline fieldbus systems

• Status Indication: LED indicators for power, communication, and input status

• Environmental Rating: Designed for industrial environments with extended temperature range operation

• Mounting: Standard DIN-rail mounting form factor

Application Implementation and Use Cases

Industrial Process Monitoring:
In manufacturing and process industries, the G50101106 module provides crucial monitoring capabilities for equipment status and process variables. Its ability to interface with both discrete sensors (limit switches, proximity detectors) and analog transmitters (pressure, temperature, flow) makes it particularly valuable in applications requiring mixed signal types. The module’s high noise immunity ensures reliable operation in electrically challenging environments.

Building Automation Systems:
For HVAC control and energy management applications, the single-channel input module offers ideal solutions for point-level monitoring. The universal input capability allows the same module type to serve multiple purposes throughout a building management system, from monitoring room temperatures (via 0-10V sensors) to detecting equipment status (through dry contacts). This versatility significantly simplifies system design and maintenance.

Technical Advantages and System Integration

The G50101106’s universal input architecture provides significant advantages in system design and implementation. Engineers can standardize on a single module type for various input requirements, reducing inventory complexity and streamlining maintenance procedures. The module’s plug-and-play compatibility with the Dupline fieldbus ensures quick integration into existing systems without complex configuration requirements.

The high-grade galvanic isolation protects sensitive control equipment from field-side electrical disturbances, while the robust construction ensures reliable operation in demanding industrial conditions. The module’s compact design optimizes control panel space utilization, and the clear status indicators facilitate quick diagnostics and troubleshooting.

Configuration and Operational Parameters

Configuration of the G50101106 is typically performed through the Dupline master device or dedicated configuration tools, allowing flexible adaptation to specific application requirements. The input type selection, scaling parameters, and filter settings can be easily modified to match connected sensor characteristics, providing operational flexibility without hardware modifications.

The module maintains stable performance across its specified operating range, with minimal drift and excellent long-term reliability. The input circuitry incorporates protection against overvoltage and reverse polarity, while the communication interface ensures data integrity through advanced error-checking mechanisms.

Conclusion

The Carlo Gavazzi Dupline Single-Channel Input Module G50101106 delivers exceptional versatility and reliability for industrial signal acquisition applications. Its universal input capability, combined with the proven performance of the Dupline fieldbus, provides system designers with a robust and flexible solution for diverse monitoring requirements. For applications demanding reliable signal interface in distributed control architectures, this module represents an optimal balance of performance, flexibility, and cost-effectiveness, supporting both operational efficiency and system scalability in modern industrial automation environments.

---

Keywords: Carlo Gavazzi Dupline, Single-Channel Input Module, G50101106, Dupline fieldbus, universal input module, digital input analog input, industrial automation, signal acquisition, Carlo Gavazzi G5010 series, sensor interface, process monitoring, building automation, distributed I/O, reliable signal conditioning.
