GAP1605

Description

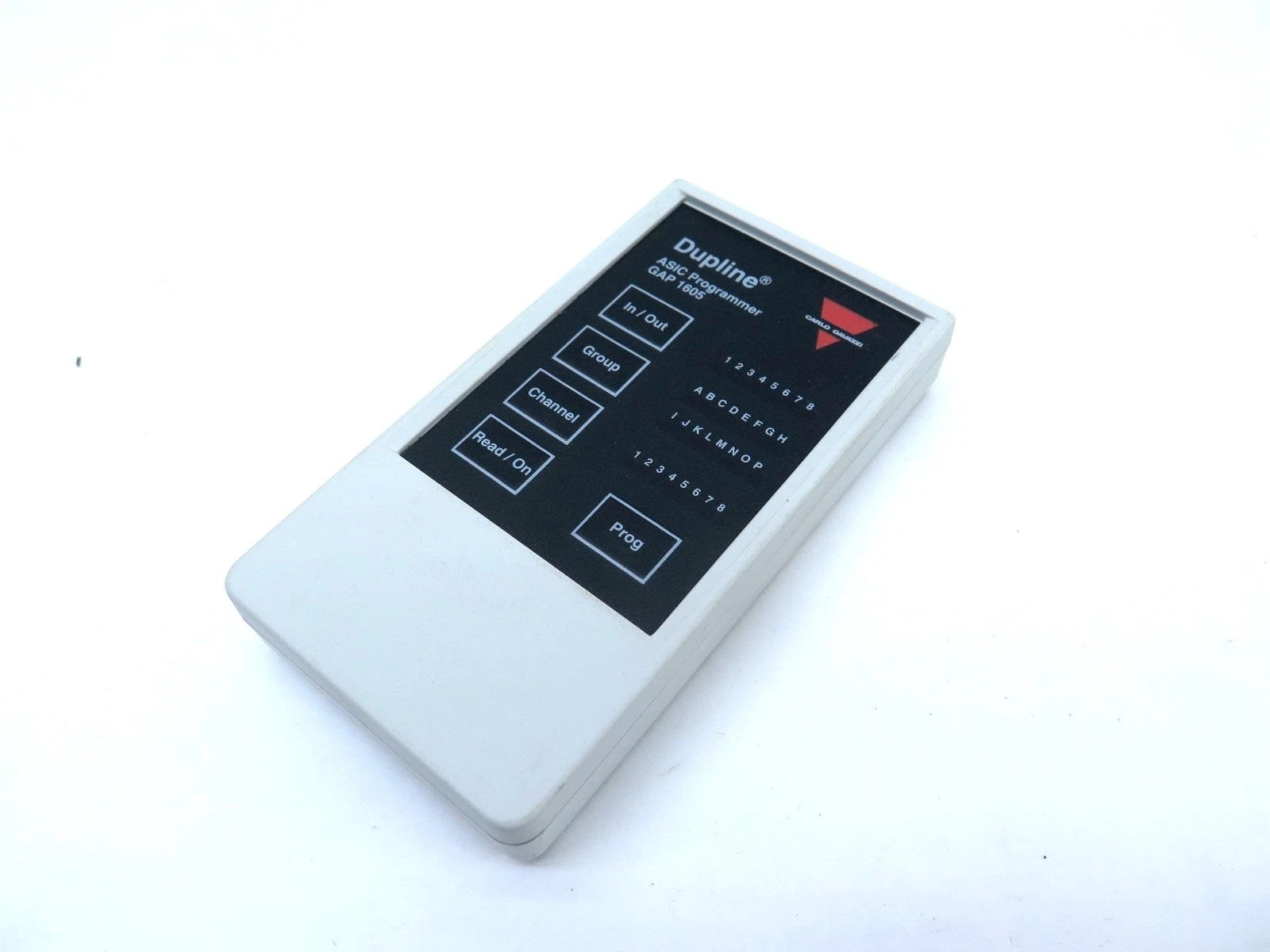

The Field Engineer’s Command Center: A Deep Dive into the Carlo Gavazzi Dupline Handheld Operator Terminal GAP1605

In the vast and often complex landscape of industrial automation, the ability to interact directly with field devices is not just a convenience—it’s a necessity. Whether for commissioning a new system, calibrating a sensor, or troubleshooting a network fault, technicians need a portable, robust, and intuitive tool. The Carlo Gavazzi Dupline Handheld Operator Terminal GAP1605 is precisely that tool. Designed as the ultimate mobile interface for the Dupline fieldbus system, this device empowers engineers to command and configure an entire network from the palm of their hand.

This device transcends the simple functionality of a programmer or configurator; it is a comprehensive operator terminal that brings the control room to the field. This article provides a detailed exploration of the Carlo Gavazzi GAP1605, covering its core features, practical applications, and the significant advantages it offers for maintaining and optimizing industrial automation systems.

Product Introduction: The Carlo Gavazzi GAP1605 Handheld Terminal

The Carlo Gavazzi GAP1605 is a portable, battery-powered handheld operator terminal specifically engineered for the Dupline fieldbus ecosystem. It serves as a mobile master and diagnostic tool, allowing direct connection to the two-wire Dupline bus at any access point. Unlike a fixed master gateway, the GAP1605 provides unparalleled mobility, enabling technicians to interact with, monitor, and configure any Dupline slave device—from I/O modules and energy meters to counters and sensors—directly on-site, without the need for a laptop or a trip back to the control panel.

Its role is critical throughout the entire lifecycle of a Dupline system: from initial commissioning and device configuration to real-time system monitoring and rapid troubleshooting.

Core Technical Specifications and Key Features

The power of the GAP1605 lies in its specialized feature set, designed for clarity, durability, and ease of use in demanding environments.

• Model: Carlo Gavazzi GAP1605 Handheld Operator Terminal

• Primary Function: Portable Dupline master, configurator, and monitoring tool.

• Display: Features a clear, backlit LCD screen that displays vital information such as device addresses, measured values (digital status, analog values), and system parameters.

• Keypad: Equipped with a tactile, sealed keypad for easy navigation through menus, parameter input, and device addressing, even while wearing gloves.

• Dupline Connection: Connects to the fieldbus via a dedicated port, typically using a plug-in connector or test leads, allowing for quick and temporary attachment to the bus wires.

• Battery Operation: Powered by standard or rechargeable batteries, ensuring complete portability and isolation from the mains supply, which enhances safety during live testing.

• Device Addressing and Configuration: A core function is its ability to assign and modify the unique Dupline address of slave devices. It can also read and write configuration parameters to universal I/O modules, setting them as digital inputs, 4-20mA inputs, etc.

• Real-Time Monitoring: Technicians can poll any device on the network in real-time to see its status and measured values. This is indispensable for verifying sensor operation, checking for faulty switches, or confirming analog signal integrity.

• Diagnostic Capabilities: The terminal can perform advanced bus diagnostics, checking for wiring faults, short circuits, and communication errors, helping to rapidly isolate and resolve network issues.

• Ruggedized Design: Built to IP-rated standards (specific rating may vary), it is resistant to dust, moisture, and accidental drops, making it suitable for use in harsh industrial settings, from factory floors to outdoor substations.

Application Scenarios: Where the GAP1605 is Indispensable

The Carlo Gavazzi handheld terminal is a versatile tool that proves its value in numerous field scenarios.

1. System Commissioning and Startup:
During the initial installation of a Dupline network, the GAP1605 is used to assign addresses to hundreds of devices. Instead of manually setting DIP switches on each module, a technician can walk the line, plug in the terminal, and digitally assign sequential addresses, dramatically reducing commissioning time and minimizing errors.

2. On-Demand Troubleshooting and Maintenance:
When a pump fails to start or a sensor reading seems erratic, the technician can go directly to the field device. Using the GAP1605, they can:

• Check if a limit switch is actually changing state (digital input monitoring).

• Verify that a pressure transmitter is outputting the correct 4-20mA signal by reading the converted value on the terminal.

• Determine if a communication fault is localized to a single device or a segment of the bus.

3. System Modifications and Retrofits:
When adding a new sensor or changing a device’s function, the terminal allows for quick re-configuration. For example, a channel on a universal I/O module can be repurposed from a dry contact to a 0-10V input without any hardware changes, simply by reconfiguring it with the GAP1605.

4. Operational Checks and Audits:
For periodic system checks or energy audits, maintenance personnel can use the handheld terminal to quickly gather data from energy meters or check the operational status of various equipment without needing to access the central SCADA system.

Advantages and Value Proposition

Integrating the GAP1605 into a Dupline maintenance workflow delivers immediate and tangible benefits:

• Drastically Reduced Downtime: Enables rapid diagnosis and resolution of issues directly at the source, preventing prolonged production stoppages.

• Enhanced Operational Efficiency: Eliminates the need for multiple trips between the field and the control room, saving valuable time and labor.

• Improved Accuracy: Digital configuration eliminates the human error associated with manual DIP switch setting and analog multimeter interpretation.

• Empowered Technicians: Gives field staff the tools and data they need to solve problems independently and confidently.

• Comprehensive System Insight: Provides a window into the entire Dupline network from any connection point, offering a level of visibility that is otherwise impossible without a fixed master.

Common Questions and Troubleshooting (FAQ)

Q1: Can the GAP1605 be used to modify configurations while the system is running?
A: Yes, in most cases. The Dupline system is designed to allow online configuration. However, it is always best practice to consult system operational procedures before making live changes to critical processes.

Q2: What is the difference between the GAP1605 and using a laptop with configuration software?
A: While a laptop is powerful, the GAP1605 is purpose-built for the field. It is more rugged, battery-powered, instantly ready, and features a simpler, dedicated interface that is faster for common tasks like addressing and monitoring. It’s a tool optimized for efficiency and durability on the plant floor.

Q3: The terminal cannot communicate with the bus. What should I check?
A:

• Power: Verify the terminal’s battery level.

• Connection: Ensure the test leads are securely connected to the correct Dupline bus wires.

• Bus Voltage: Use a multimeter to check that there is approximately 30V DC on the bus from a channel generator or gateway. A dead bus will prevent communication.

• Polarity: While Dupline is non-polarity sensitive, try reversing the connections.

Q4: Can it be used with all Dupline devices?
A: Yes, the GAP1605 is designed to be compatible with the entire range of Carlo Gavazzi Dupline slave devices, including all I/O modules, meters, and sensors.

Conclusion: An Indispensable Tool for Dupline System Integrity

The Carlo Gavazzi Dupline Handheld Operator Terminal GAP1605 is far more than a peripheral device; it is an essential component of a well-maintained and efficiently operated Dupline system. It transforms the way technicians interact with the automation network, turning complex troubleshooting and configuration tasks into streamlined, on-the-spot procedures.

For any organization relying on the robustness of the Dupline fieldbus, equipping their team with the GAP1605 is a strategic investment in operational excellence, ensuring that the system remains reliable, adaptable, and efficient for years to come.

---
