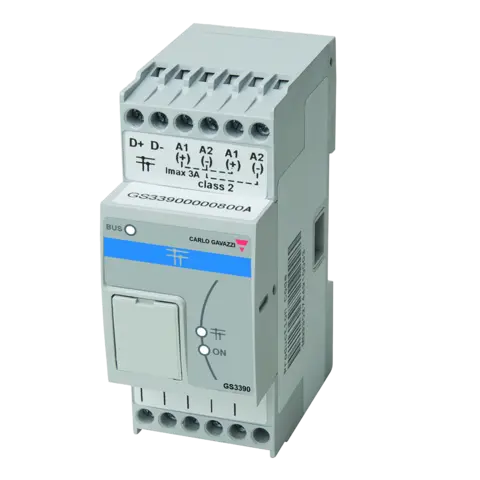

The Heartbeat of Your Network: A Deep Dive into the Carlo Gavazzi Dupline Channel Generator GS33900000800A

In the robust and reliable world of industrial automation, certain components work behind the scenes as the unsung heroes of the system. While gateways, I/O modules, and sensors often take the spotlight, the integrity of the entire network depends on a stable and precise foundation. The Carlo Gavazzi Dupline Channel Generator GS33900000800A is one such critical component. It is not merely an accessory but the very signal generator that provides the “heartbeat” for the entire Dupline fieldbus network, ensuring accurate and error-free communication between the master and all connected slaves.

This article provides a detailed exploration of the Carlo Gavazzi GS33900000800A, a device often overlooked but absolutely essential for the commissioning, maintenance, and troubleshooting of any Dupline system. We will cover its fundamental role, key technical features, practical application scenarios, and answer common questions to solidify your understanding of this vital piece of industrial automation infrastructure.

Product Introduction: What is the Carlo Gavazzi GS33900000800A?

The Carlo Gavazzi GS33900000800A is a specialized Dupline channel generator, also commonly referred to as a signal generator or bus power supply. Its primary function is to generate and supply the precise, regulated DC voltage that forms the communication channel for the Dupline fieldbus system. Unlike a standard power supply, this device provides the conditioned power and reference signal upon which the entire data exchange protocol is superimposed.

Think of the Dupline network as a sophisticated conversation. The gateway (master) asks questions, and the I/O modules (slaves) provide answers. This entire conversation happens over a shared two-wire bus. The GS33900000800A does not participate in the conversation; instead, it provides the stable and noise-free “room” or “channel” in which the conversation takes place, ensuring that every message is heard clearly, without distortion, even over long distances and in electrically noisy environments.

Core Technical Specifications and Key Features

Understanding the technical prowess of the Carlo Gavazzi Dupline channel generator is key to appreciating its importance.

• Model: GS33900000800A (Note the ‘A’ suffix, which may indicate a specific version or revision).

• Primary Function: To generate and supply the Dupline carrier signal and operating voltage for the Dupline bus.

• Output Voltage: Provides a stabilized 30V DC output specifically designed for the Dupline network.

• Current Limiting: Features built-in current limiting to protect both the generator itself and the connected bus from short-circuit conditions and overloads.

• Power Supply Input: Typically requires a standard primary power input, such as 230V AC, which it then converts and regulates down to the precise 30V DC required by the Dupline bus.

• LED Indicators: Includes a power-on LED indicator, providing a simple visual confirmation that the unit is operational and supplying power to the bus.

• DIN-Rail Mountable: Designed for easy installation in standard control panels, conforming to the form factor of other Dupline components.

• Noise Immunity: By providing a clean, stable voltage source, it enhances the inherent high noise immunity of the Dupline system, which is capable of operating on plain telephone cable over distances up to 10 km.

Application Scenarios: Where the GS33900000800A is Indispensable

The Carlo Gavazzi channel generator is not always required in very small systems, where a master gateway with a built-in power supply might suffice. However, it becomes crucial in the following scenarios:

1. Large-Scale and Long-Distance Dupline Networks:
As a Dupline network expands—covering a large factory, a widespread water treatment facility, or an extensive building complex—voltage drop along the bus wires becomes a significant concern. The GS33900000800A is used as a centralized power inserter or repeater to boost the signal and voltage level, ensuring that devices at the far end of the network receive adequate power for reliable operation.

2. Systems with High Power Consumption:
Networks with a large number of slaves, or those powering devices that draw more current (e.g., certain types of sensors or actuators directly from the bus), can exceed the current capacity of a gateway’s internal supply. The GS33900000800A provides the additional current capacity needed to support these power-hungry networks reliably.

3. Network Segmentation for Reliability:
In complex system designs, engineers may segment a large Dupline network into smaller, electrically isolated branches for improved fault tolerance. A Dupline channel generator can be deployed on each segment, ensuring that a short-circuit or fault on one branch does not bring down the entire network, thereby enhancing overall system reliability.

4. System Commissioning and Troubleshooting:
During initial setup or when diagnosing network issues, technicians can use the GS33900000800A to isolate problems. By disconnecting the gateway and connecting the generator directly to a segment of the bus, they can verify bus integrity and voltage levels, helping to pinpoint whether an issue lies with the communication master or the field bus wiring and devices.

Common Questions and Troubleshooting (FAQ)

Q1: Is the GS33900000800A always required in a Dupline system?
A: Not always. For smaller, compact networks, the internal power supply of a Dupline master gateway (like the GRPG-I or GS33910060800) may be sufficient. The channel generator becomes essential for larger, longer, or more power-demanding networks.

Q2: Can multiple GS33900000800A units be used on the same Dupline bus?
A: Yes, but with critical consideration. They must be connected correctly to avoid conflicts. Typically, they are used to power different, electrically isolated segments of the bus. Incorrect parallel connection can damage the units. Always consult the system design guidelines.

Q3: The network is unstable. Could the channel generator be at fault?
A: Yes, it is a possibility. First, check the LED indicator. If it is off, check the primary 230V AC input. If the LED is on, use a multimeter to measure the DC voltage on the bus terminals. It should be close to 30V DC. A significantly lower voltage indicates a potential overload or a fault in the generator itself.

Q4: What is the difference between this and a standard 24V DC power supply?
A: A standard 24V DC supply is not a direct substitute. The GS33900000800A provides a specific 30V DC voltage optimized for the Dupline carrier signal. Using an incorrect voltage can lead to communication errors, reduced noise immunity, and unreliable operation of the entire network.

Conclusion: The Foundation of a Reliable Dupline System

The Carlo Gavazzi Dupline Channel Generator GS33900000800A may not be the most glamorous component in an automation cabinet, but its role is foundational. It is the dedicated guardian of network integrity, providing the clean, stable power that allows the remarkable long-distance communication and noise immunity of the Dupline fieldbus to be fully realized.

For system integrators designing extensive monitoring and control systems, specifying this component is a best practice that ensures scalability, reliability, and ease of maintenance. By investing in the GS33900000800A, you are not just buying a power supply; you are investing in the unwavering stability and longevity of your entire industrial automation infrastructure.

---
